What is a breadboard? How the holes are connected (beginner guide)

#The short answer

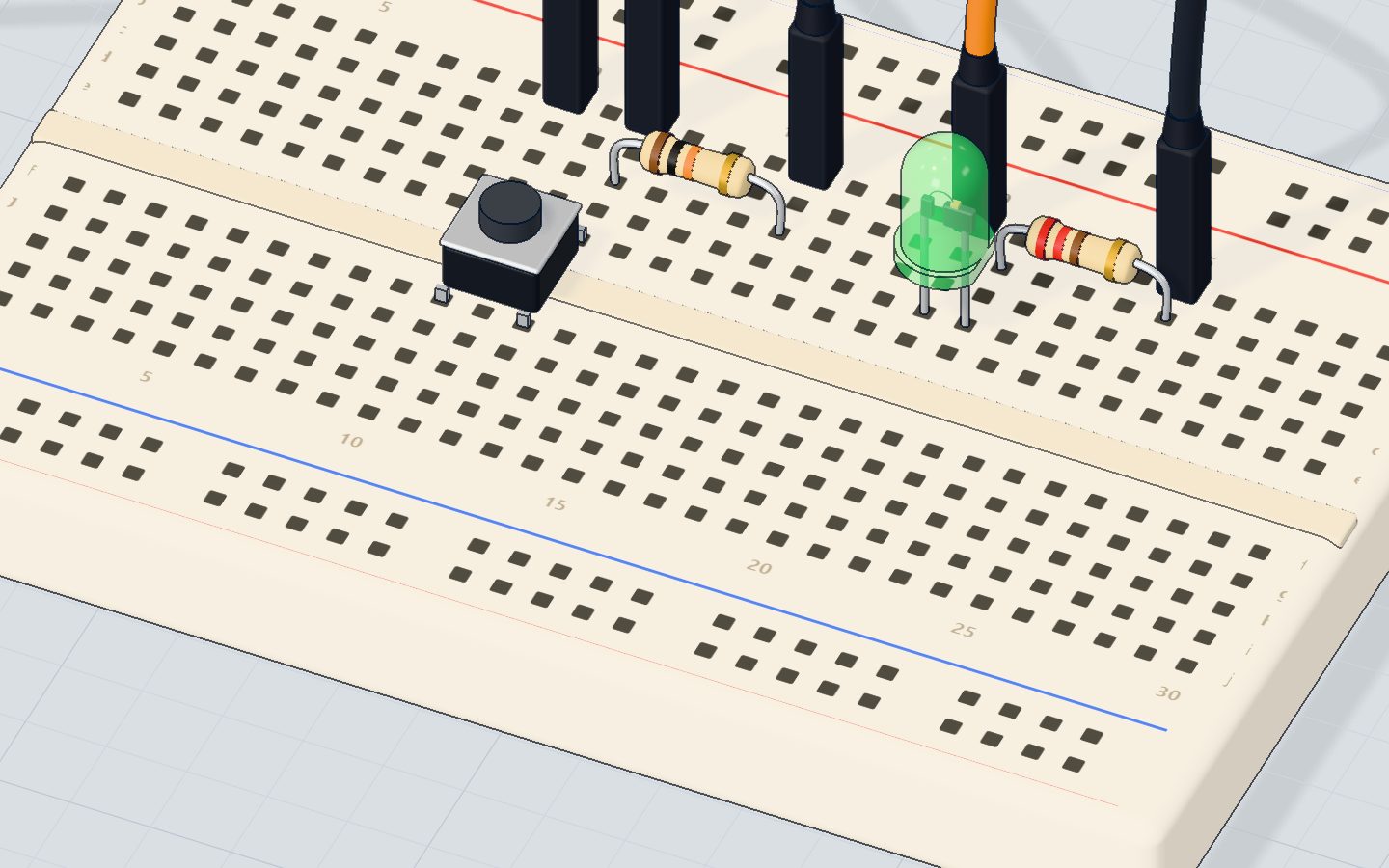

A breadboard is a plastic board full of holes with metal strips hidden inside. When you push two legs into holes that share a strip, they are connected — exactly as if you had soldered a wire between them. Pull them out and the board is ready for the next idea.

The name is old: early radio builders really did nail parts onto wooden boards meant for slicing bread.

#Which holes are joined

There are only three rules:

1. Strips of five. In the middle area, each line of five holes (for example 12a, 12b, 12c, 12d, 12e) is one strip. Anything pushed into those five holes is connected.
2. The gap. The channel down the middle splits the board in two: 12a–12e is not connected to 12f–12j. Chips and buttons straddle the gap so that each of their legs gets its own strip.
3. The rails. The long lines along the edges (red + and blue −) run the whole length of the board. Connect them once to 5V and GND, and you have power everywhere.

#How a real circuit uses it

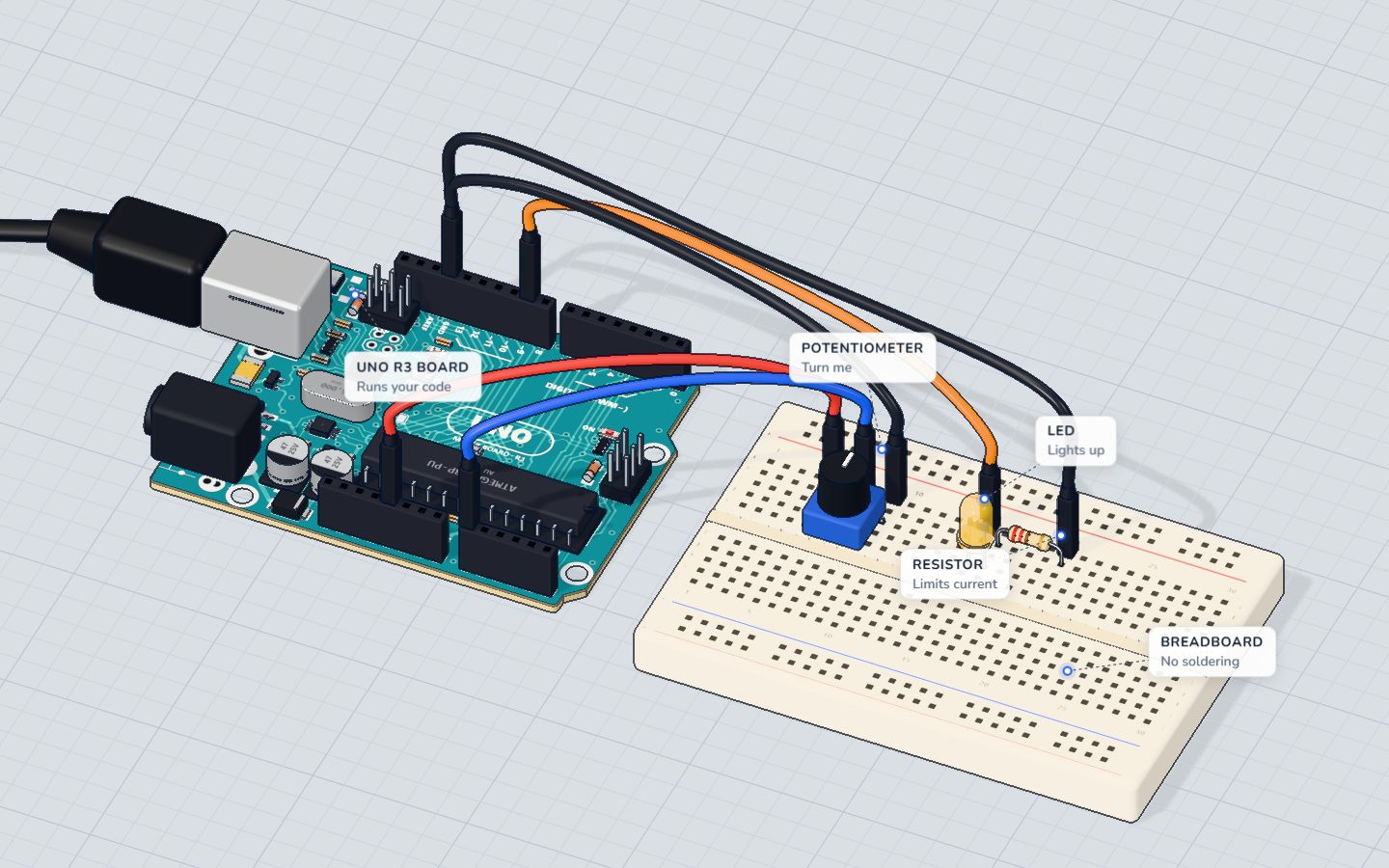

Look at a knob (potentiometer) project: the knob's three legs each sit in their own strip; a jumper brings 5V to one strip, GND to another, and the middle leg's strip goes to pin A0. The resistor and LED share a strip where one leg meets the other — that shared strip is the connection.

Play in 3DRun the code · press the parts · turn it around

#The 4 mistakes every beginner makes

• Both legs of a part in the same strip. The strip connects them, so the part is short-circuited — an LED never lights, a resistor does nothing. Turn the part so its legs are in different strips.
• Forgetting the gap. Two wires at 12c and 12h are not connected.
• Split rails. On some long breadboards the rails are broken in the middle (look for a gap in the red/blue line). Bridge them with a short wire.
• Loose legs. A leg that isn't pushed in all the way connects only sometimes. Push firmly until it stops.

#Do I even need a breadboard?

No! For modules with header pins (like the HC-SR04 distance sensor, a servo or an OLED screen) you can plug jumper wires straight onto the pins. In our 3D lab every part can also stand on the table with wires going straight to its legs — the breadboard is just a convenient way to join many legs at once.

#Check yourself

#Questions people ask

#What size breadboard should I buy?

A half-size board (400 holes, 30 columns) is perfect for every beginner project here. Full-size (830 holes) helps for bigger builds.

#Can a breadboard handle high current?

No — keep it under about 1 A. Motors that need more should be wired with thicker wires and a separate supply.

#Why do some breadboards have numbers and letters?

So you can describe a position exactly — "LED in 12c" — just like squares on a chessboard. Our 3D lab uses the same names.
