Arduino UNO board explained — the pins, the LEDs and your first sketch

Before you wire a single part, the Arduino UNO can already do something. Meet the board, find every pin and light on it, and run your first sketch — the board's own LED blinks and it says hello to your computer.

An Arduino UNO board on its own, plugged in with a USB cable, with labels on its pins
Try this project in 3DRun the code, press the parts, break things safely — free, in your browser.Open in 3D →

What you need

  • Arduino UNO R3 (or a compatible board)
  • USB cable (A to B)

Don't have the parts? Build it in 3D first.

What you will build

Nothing to build yet — and that is the point. You plug in the board, upload a short sketch (an Arduino program), and the tiny LED marked L blinks twice a second. Every time it blinks, the board counts and sends a line like Blinks: 7 to your computer, so you can see the program running.

The UNO is the board most people start with. The same chip family runs 3D printers, school robots, weather stations and home-made game controllers. Learn this board well and every later project is "the same thing, plus a part".

How it works

The UNO is a small computer on a board. In the middle sits the ATmega328P microcontroller — a chip with its own processor, memory and pins. You write the sketch on your computer, the USB cable carries it into the chip's memory, and from then on the board runs it by itself, even without the computer (as long as it has power).

Inside the UNOValue
MicrocontrollerATmega328P
Speed16 MHz (16 million steps a second)
Flash (where your sketch lives)32 KB
RAM (where variables live)2 KB
Working voltage5 V
Safe current per pin20 mA (40 mA absolute maximum)

Pin 13 is joined on the board to a little LED marked L. That is why this first sketch needs no wires: when the program puts 5 V on pin 13 (HIGH), current flows through the L LED and it lights; at 0 V (LOW) it goes dark. In code, this LED has its own name: LED_BUILTIN.

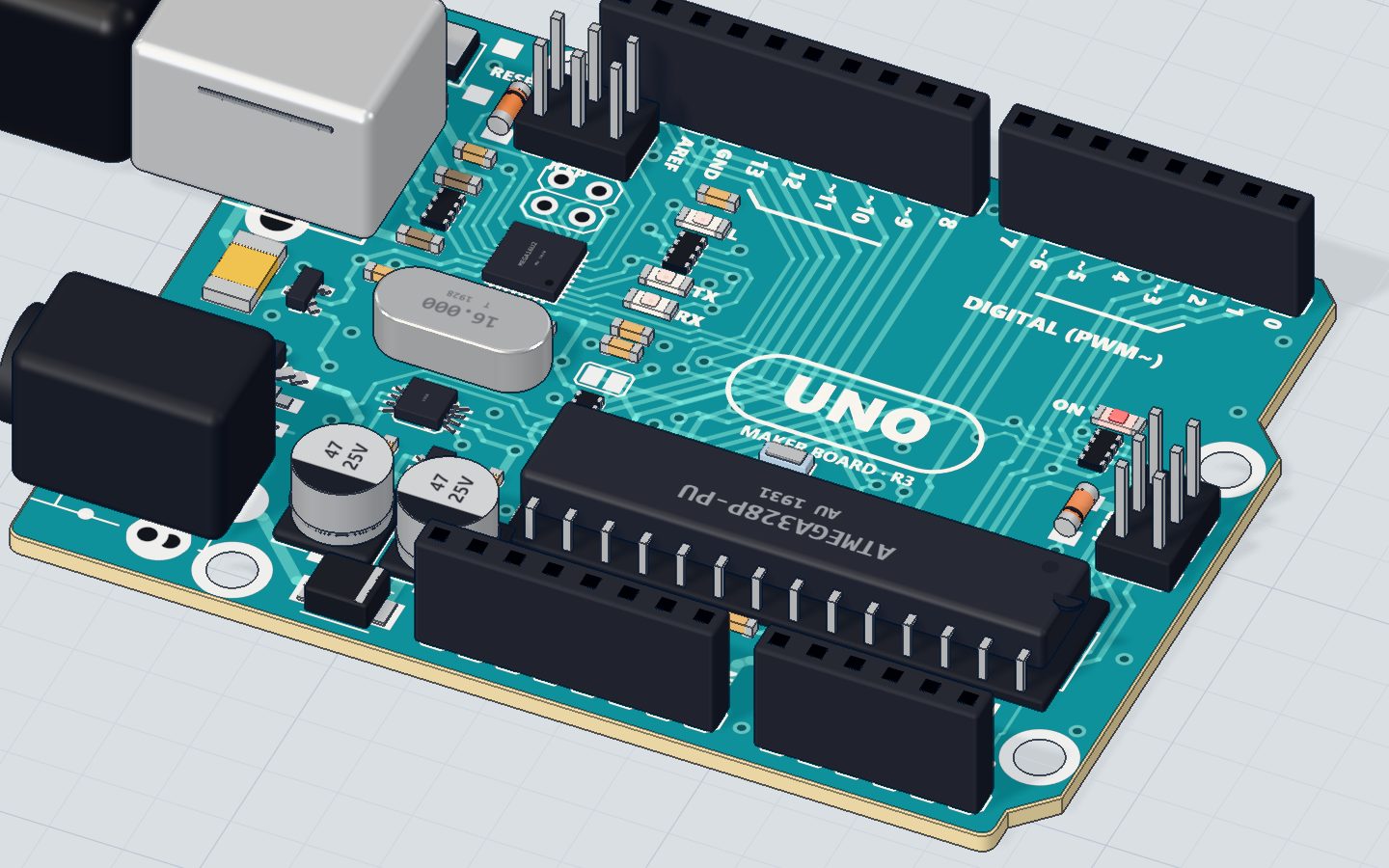

Close-up of the Arduino UNO with the L LED next to pin 13 lit
The L LED sits right next to pin 13 — the same pin your Blink circuit will use next.

A tour of the board: pins and parts

Hold the board with the USB socket on the left. Here is what you see:

Part of the boardWhat it does
USB socketPower (5 V from your computer), uploading sketches, and the serial monitor
Power jackRun the board from a 7–12 V adapter or battery instead of USB
Reset buttonStarts your sketch again from the top, like turning it off and on
Digital pins D0–D13Outputs (switch 5 V or 0 V) or inputs (read HIGH or LOW)
Pins marked ~ (3, 5, 6, 9, 10, 11)Can also "dim" with PWM: analogWrite() from 0 to 255
Analog pins A0–A5Read any voltage from 0 to 5 V as a number from 0 to 1023
5V and 3.3V pinsPower for the parts you add
GND pinsGround — the 0 V return path every circuit needs
ON LEDLit whenever the board has power
L LEDJoined to pin 13 — you control it
TX and RX LEDsFlicker when data goes to (TX) or comes from (RX) your computer

The code, line by line

// The board's own LED (marked L) is on pin 13.
int blinks = 0;

void setup() {
  pinMode(LED_BUILTIN, OUTPUT);
  Serial.begin(9600);
  Serial.println("Hello from the UNO!");
}

void loop() {
  digitalWrite(LED_BUILTIN, HIGH);
  delay(500);
  digitalWrite(LED_BUILTIN, LOW);
  delay(500);
  blinks = blinks + 1;
  Serial.print("Blinks: ");
  Serial.println(blinks);
}
  • // … is a comment: a note for people. The chip ignores it.
  • int blinks = 0; makes a variable — a named box that holds a whole number. It starts at 0. Because it is outside any function, it keeps its value between loops.
  • setup() runs once, when the board powers up or you press reset.
  • pinMode(LED_BUILTIN, OUTPUT) makes pin 13 an output, so the program drives it.
  • Serial.begin(9600) opens the serial connection to your computer at 9600 bits per second. The serial monitor must use the same speed.
  • Serial.println("Hello from the UNO!") sends that text once, followed by a new line.
  • loop() runs again and again, forever, as fast as it can.
  • digitalWrite(LED_BUILTIN, HIGH) puts 5 V on pin 13: the L LED lights. delay(500) waits 500 ms, half a second.
  • blinks = blinks + 1; adds one to the counter after each full blink (on + off = 1 second).
  • Serial.print("Blinks: ") sends text without a new line; Serial.println(blinks) sends the number and ends the line. Together: Blinks: 1, Blinks: 2…

Common mistakes

  • Nothing in the serial monitor. The monitor's speed is not 9600. Set it to match Serial.begin(9600). See the serial monitor explained.
  • Garbled characters like ⸮⸮⸮. Same cause: the baud rate (speed) does not match.
  • "Expected ';' before…". A line is missing its semicolon. Every statement ends with ; — but void loop() { does not.
  • led_builtin was not declared. C++ cares about capitals. It must be LED_BUILTIN, and pinMode, not pinmode.
  • The L LED blinks, but not your way. A brand-new UNO already runs a blink sketch from the factory. Make sure your upload really finished.

Try these challenges

  1. Change both delays to 200 and run again. How many blinks per second now?
  2. Make the "on" time short and the "off" time long: a quick flash every two seconds.
  3. Print a message only every tenth blink. Hint: if (blinks % 10 == 0).
  4. In the 3D lab, press Run and watch the L LED next to pin 13, then open the serial monitor and watch the count go up.

Check yourself

  1. How often does the code inside loop() run?

  2. Which pin is the L LED on the UNO joined to?

  3. What value does analogRead() give for 5 V on an analog pin?

Questions people ask

What is the difference between the Arduino UNO and other Arduino boards?

The UNO is the standard beginner board: 5 V, 14 digital pins and 6 analog inputs, with sockets for jumper wires. The Nano has the same chip in a smaller body; the Mega has many more pins. Code for the UNO runs on them almost unchanged.

Can the Arduino UNO run without a computer?

Yes. Once uploaded, the sketch stays in the flash memory even when power is off. Give the board power from a USB charger or a 7–12 V adapter on the jack, and it starts running the sketch straight away.

What does LED_BUILTIN mean?

It is a name that the Arduino software gives to the pin with the board's own LED. On the UNO it is pin 13. Using the name makes the same sketch work on boards where the LED sits on a different pin.

Do I need to buy an Arduino to learn?

No. Our free 3D lab runs the real compiled code on a simulated ATmega328P — the same chip as on the UNO — right in your browser. Buy the board when you are ready to hold it. To understand what Arduino is in the first place, read what is Arduino.
